Cameron Fuller Uncorded Square 30 Double Curtain Track with Cap Finials – can be bent by hand for bay windows
A double curtain track is ideal for layering a voile / sheer fabric with a heavier curtain, offering flexibility in privacy and shading throughout the day. Layering fabrics is a stylish way to dress your window and adds warmth and texture to your interiors.
The Cameron Fuller Square 30 double curtain track is available in 7 contemporary colours to co-ordinate with your interiors. The colours range from classic white and warm neutrals, to cooler greys and black. Tracks are available up to 3m as a single piece, and can be joined to make up longer lengths. This track is supplied with a simple cap finial. A ball style finial is also available. The tracks are available with standard gliders for pencil, pinch pleat or gathered headings. Surf gliders are also available on the front track making the tracks suitable to hang wave curtains. Curtain tracks are not suitable for eyelet curtains. We offer a free cut to size service on the Cameron Fuller straight tracks so can dispatch them to your exact length. Please note bent tracks will be supplied oversized to be cut on site for a precise fit. Tracks over 300cm will be supplied in 2 or more pieces with a track joiner(s).
When placing your order, the ‘Glider Type’ refers to the gliders on the front track. The back track will be supplied with standard gliders.
Wave Curtains
This track can be supplied with surf gliders on the front track so the tracks are compatible with the wave curtain heading style. 6omm or 80mm surf gliders can be specified when ordering your track. The correct amount of surf gliders will be supplied for your track length. Please click here for more information on the Wave system. Please note all tracks will be supplied with a magnetic glider brake when surf gliders are specified. The glider brake ensures the leading edge of the wave curtain sits neatly stacked when your curtains are open. Please see the glider tab for further information.
Bay Windows
Please note: we do need to know when ordering this track if you are planning to bend it. The profile for a bent track is different to a straight track to enable you to bend it. Please specify a ‘bent’ track when ordering so the correct profile is manufactured. The track will also arrive with a wooden bending former required for bending. Please download the fitting instructions here.
Tracks intended for bending will arrive oversized to be cut to size on site for a precise fit.
Brackets

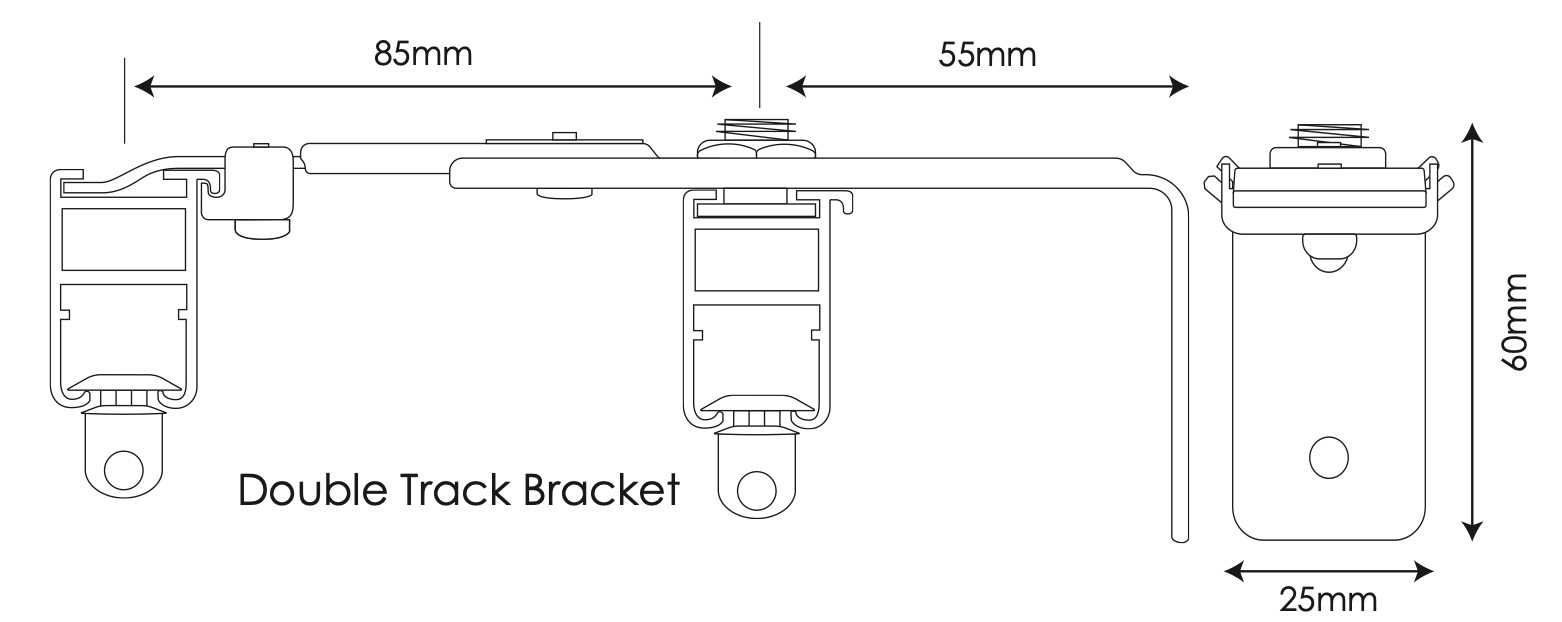

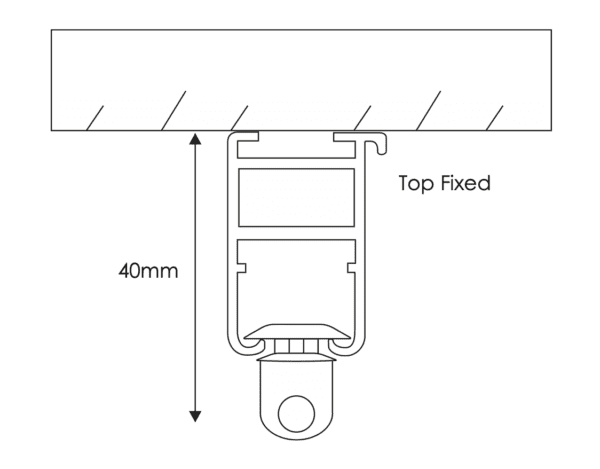

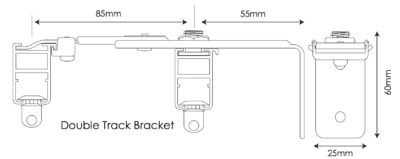

When ceiling (top) fixing this track, the track screws directly into the ceiling so no brackets are required. For wall fixing a double wall fix bracket will be supplied. Please see the bracket tab for bracket dimensions.
Curtain Inspiration and Advice!
If you are also looking for some new curtains for your curtain track click here to view our range of Readymade Pencil Pleat Curtains. For bespoke, made to measure curtains view our range of fabrics from leading fabric houses that can be made up into beautiful curtains with a variety of curtain heading and lining options. Peruse our range of voile / sheer fabrics here, ideal for your back track. Read our blog post on our hand made curtains and roman blind service.
We are delighted to be offering a wide range of Laura Ashley curtains on our website.
Wave curtains
We specialise in the wave curtain heading and are here to offer help and advice. We offer a made to measure wave curtain making service in a wide variety of fabrics including Silent Gliss, Clarke & Clarke, Prestigious Textiles, Ashley Wilde, Harlequin and Sanderson to name a few of the fabric houses we work with. Click here for more information on the wave heading and shop suitable fabrics. A wave curtain needs to be made specifically to fit your track length so the curtains arrive with the correct number of curtain hooks to match the number of gliders on the track. If you order your track and curtains from us we will ensure these match so your curtains will be ready to hang upon delivery. Please call us on 01590 615775 or email sales@thehomeofinteriors.co.uk if you’d like any fabric swatches sending out or would like to discuss your project in more detail. The standard lead-time on our wave curtains is 3-4 weeks (subject to fabric availability).
Making your own Wave Curtains
Click here to shop our wave accessories including wave heading tape, wave hemming tape and Silent Gliss curtain hooks.
View our Trend Guides for Design Ideas and Inspiration.
Curtains shown in images above:
Laura Ashley Pussy Willow Lined Pencil Pleat Curtains
Silent Gliss Natural Curtains
Sanderson One Sixty Etchings & Roses
Supplied in 2 pieces from: Over 300cm.
Weight Guidance: these tracks are suitable for curtains up to 10kg per metre per track.
Leadtime: 2-3 working days for dispatch.
Please download the fitting instructions here for a straight track.
Bay window fitting instructions.
Please get in touch with our customer care team if you have any questions with regards to installation. Please email customercare@thehomeofinteriors.co.uk or call us on 01590 615775 option 2.
Please download the Technical Specification here.
Please get in touch with our customer care team if you have any technical questions. Please email customercare@thehomeofinteriors.co.uk or call us on 01590 615775 option 2.
Measuring Guide for a Curtain Track:
Decide where the track is to be positioned. This is usually above the window with the track extending either side beyond the window.
Step 1: Measure the width of your window.
Step 2: The chart below provides guidance for making an allowance either side of your window for your curtain stack (shown as ‘B’ on the diagram above). This is particularly important if you want the curtains to clear the glazing when open. Please note the curtain heading, fabric thickness and lining specification will affect the width of the stack back. How much you would like the curtains to clear the window is down to personal preference. The chart below however is a good guide.
Step 3: Add the width of your window onto the ‘B’ measurement (x 2 for a pair of curtains) to give you the finished track length (A).
Recess Fitting
If you are fitting your track wall to wall or within a recess we recommend you take the wall to wall measurement and deduct 1cm for hand drawn and corded tracks to ensure the track can be fitted easily within the recess. For motorised tracks we recommend you deduct 2cm from your wall to wall measurement to ensure enough space to fit the curtain around the motor.
Measuring Curtain Track lengths for Wave Curtains
If you are opting for a wave curtain the stack back is a mathematical calculation. A curtain stacks back 18cm per metre of curtain track with an 80mm wave heading, and 23cm per metre of track with a 60mm wave heading.
Please see the example below:
On a 3m track for a pair of curtains with an 80mm wave the stack back will be 3m x 18cm = 54cm / 2 = 27cm each side.
For a single curtain the curtain will stack 54cm one side.
On a 3m track for a pair of curtains with a 60mm wave the stack back will be 3m x 23cm = 69cm / 2 = 34.5cm each side.
For a single curtain the curtain will stack 69cm one side.
Wave curtains are particularly popular over bi-fold or sliding doors or over large expanses of floor to ceiling glass. If there is wall space to the side of the glazing the track length can be worked out so the curtain neatly sits on the side wall(s) clearing the glazing to allow the light to flood into your room.
Please view our wave curtain information page for more information on the wave curtain heading style.
Please read our measuring guide blog post for further information.
For precision measuring we recommend the GATORTAPE Window Furnishing Precision Tape Measure.
