Silent Gliss 4970 Motorised Roller Blind – Medium to Heavy Weight Blinds

View description | View delivery options

Select Fabric

Silent Gliss Roller Blinds

Silent Gliss offers the most comprehensive, technically advanced roller blind systems for contract and residential installations, available with their wide range of fabrics suitable for roller blind application.  Silent Gliss beautifully balance functionality, quality and high performance with aesthetics.  Their clean lines and modern design will complement a variety of interior design styles, and the wide range of fabrics and colours available ensure they will co-ordinate with your interior colour scheme.  All Silent Gliss roller blinds are made to measure by experienced specialists to guarantee perfect functionality, day after day.  Click here to view the Silent Gliss roller blind product brochure.

Silent Gliss Motorised Roller Blind System 4970

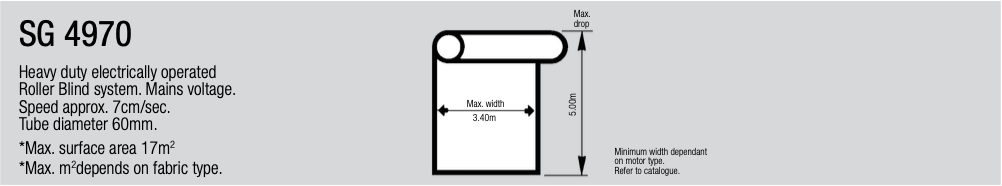

This is a heavy duty motorised roller blind system for contract and residential installations.  The 4970 motorised roller blind is suitable for medium to heavy weight blinds up to 3.4m wide x 5m drop with a 10kg weight capacity.  The blind can be controlled with a wall switch or other Silent Gliss radio controls.  Integration with home automation systems is also possible.

For a motorised system for light to medium weight blinds we would recommend the Silent Gliss Motorised Roller Blind 4960 system.

Why Choose the Silent Gliss 4970 Roller Blind?

  • Ideal for extra wide windows – two blinds can be connected and controlled with one motor to offer blind solutions up to 6.8m.  Connected centre support brackets will be supplied for a double roller blind to reduce the light gap.
  • Quiet and fast mains powered motor.
  • Optional 24V DC motor available.
  • Various control options available to suit your requirements.  A fixed switch or optional radio remote controls are available.
  • Can be combined with Radio Remote Control System Silent Gliss 9940/0450.
  • Optional Smart motor to allow integration and control by most major home control systems.
  • Progressive limit switch unit for easy setting and consistent positioning.
  • This blind system is available in white (RAL 9016), grey (RAL 7035) or black (RAL 9005) to co-ordinate with your interiors.
  • Easy ceiling, wall or recess fix with click in metal brackets and bracket covers for a neat finish.
  • Optional continuous installation profile with clamp brackets for flexibility in fixing locations.
  • Compatible with the new Silent Gliss Fascia and Blind Box systems for concealed blinds.
  • Side guide option available.
  • Choice of bottom bar designs.
  • Made to your specification and ready to install upon delivery.

Double System Options

The blind can be used as a double system where two blinds are mounted side by side (perfect for really wide windows). The double version uses a slimline centre support bracket to minimise the light gap.   This side by side system does connect the blinds, so only a single motor is required.

To order a double blind with a total width less than 350cm, enter the measurements for a single blind (½ the total width) then select the side by side double blind option, the system will  automatically adjust your order and we will supply 2 x connected blinds with the double blind fittings.

To order a double blind with a total width greater than 350cm or for two blinds with different measurements, enter the measurement for the total blind width then as you move through the options,  you can enter the widths for the individual left and right hand blinds and we will supply the blinds made to these widths with the double blind fittings.



Smart Shading

Blinds integrated into a Smart Home control system with the Silent Gliss Smart technology, can utilise the Up Synchro feature. Up-Synchro enables Silent Gliss roller blinds to synchronise their travel when ascending so that they move together with the bottom bars aligned.

See the ‘Smart Control‘ tab for more information on the Silent Gliss Smart technology.

Fascia Box and Headboxes

The Silent Gliss Fascia Boxes and Headboxes enable you to completely conceal your blinds for a sophisticated, sleek finish.

Please click here to view the Silent Gliss Fascia and Headbox brochure.

Fabric Options

Silent Gliss offer a wide range of fabric options to suit your functionality and design needs.  Silent Gliss beautifully balance superior technical features with aesthetic qualities to deliver a stunning range of fabric choices.  Read our blog post for further information on the Silent Gliss fabric portfolio.

Check out the Silent Gliss online fabric finder to find the right fabric for your requirements.



Did you know that Silent Gliss products certified by Quiet Mark can help reduce ambient noise? Sound is a significant yet often overlooked pollutant impacting health, productivity, and social cohesion. According to the World Health Organisation, environmental noise pollution ranks second only to air pollution in its disruptive effects on our wellbeing.



To order:

Choose your fabric from the wide range of Silent Gliss fabrics available for roller blind application, then specify Usage ‘Roller Blinds’ and choose system 4970.  Then proceed through the ordering process specifying your preferences and measurements.

Please email sales@thehomeofinteriors.co.uk or call us on 01590 615775 if you have any questions or need any advice.  We offer virtual and face to face design consultations through our Bespoke Design Service.

Leadtime: 10-14 working days

For the Silent Gliss Installation and user manual for the 4970 roller blind please click here.

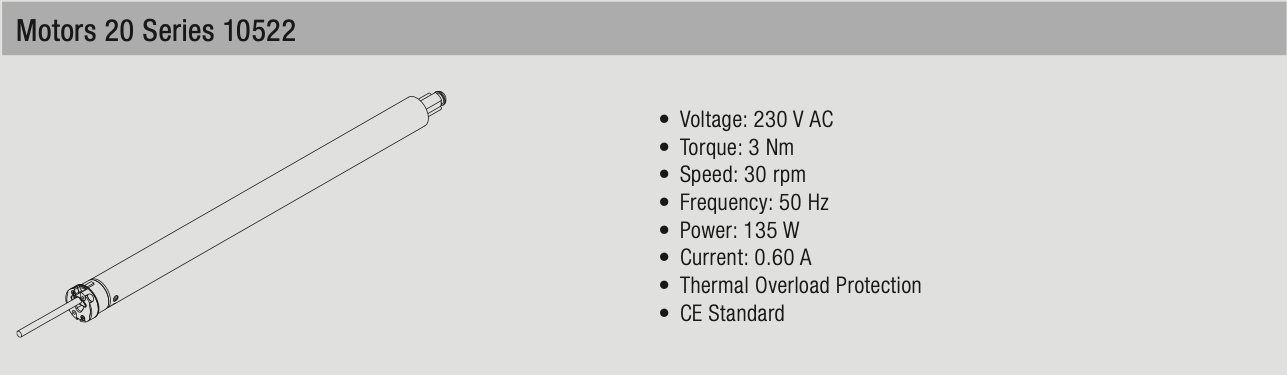

4970 with SG Series 20 motors
Silent Gliss Electrically Operated Roller Blind System 4970. Supplied made to measure and complete comprising anodised aluminium barrel with integral 230v 50 Hz powered motor. Motor left / right side. Includes 11172 bracket with 11175 click flange and 11177 motor support for wall or ceiling fixing. White bracket covers 11173/11174 supplied as standard. Aluminium bottom weight bar 4903 as standard in white. Operation
by mains switch (not supplied) or mains switching by third party control system or / SG 0450 remote control system components (supplied at additional cost)

4970 with SG Series 40 motors
Silent Gliss Electrically Operated Roller Blind System 4970. Supplied made to measure and complete comprising anodised aluminium barrel with integral 240-100v 50/60 Hz or 24V mains powered motor. Motor left / right side .Includes 11172 bracket with 11175 click flange and 11177 motor support for wall or ceiling fixing. White bracket covers 11173/11174 supplied as standard. Aluminium bottom weight bar 4903 as standard in white. Operation by dry contact switching either from fixed switch (not supplied) or third party control system and /or Silent Gliss 9940 radio control system via integrated receiver. (9940 control components supplied at additional cost)

4970 with ‘Smart by Silent Gliss’ motors
Silent Gliss Electrically Operated Roller Blind System 4970. Supplied made to measure and complete comprising anodised aluminium barrel with integral 24V DC powered motor: Motor left / right side. Operation via Silent Gliss Smart Gateway and associated components in conjunction with compatible third party control systems. Includes 11172 bracket with 11175 click flange and 11177 motor support for wall or ceiling fixing. White bracket covers 11173/11174 supplied as standard. Aluminium bottom weight bar 4903 as standard in white.

Use these links to shop control options:

9940 Remote Options

9940 Wall Switch Options

0450 Remote Options

Silent Gliss 0450 remotes

0450 Wall Switch Options

Silent Gliss 0450 wall switches



Silent Gliss Smart

Please see the next tab for full details.



Whether at home or at work, Smart technology connects products and services such as lighting, heating and audio. Complete the picture by integrating Smart by Silent Gliss – transforming your curtains and blinds into intelligent devices.

Smart by Silent Gliss is an open system designed to integrate with leading Building Management Systems (BMS). It allows customers to choose our products in the knowledge they will integrate flaw- lessly with all major home control systems.

Built in, full two-way communication ensures the most complex settings, including scenes, bottom bar alignment and up-synchroni- sation are possible.

WHAT IS A SMART BUILDING?

Smart buildings leverage automation technologies to increase efficiency (energy saving), enhance user comfort, and strengthen security.

Beyond mere efficiency, smart buildings adopt a comprehensive stance on sustainability, security, and comfort through digitalisation and connectivity. Systems and services are networked with the building to monitor the environment to exchange and leverage data. This two-way communication creates an intelligent building to optimise performance, maximising the value proposition for both the occupants and environment.

Silent Gliss systems are specifically designed to seamlessly integrate into the world’s leading building automation control systems, contributing to a 360° Smart Shading experience by Silent Gliss.

A holistic view of a networked building is created when the interaction of the individual smart technologies of several buildings is continuously analysed and optimised in comparison. Digital services evaluate all building data and optimise devices and systems. Our Silent Gliss systems are an important component of optimisable, intelligent building technology and can be seamlessly integrated into the networked building.

Download the Smart home shading Brochure by clicking below.



To shop smart control components click here.





Test Leads
Reasons for ordering a test lead:

If hard wiring is not already in place, a test lead allows you to set up, test and commission the product without the electrician being there to hard wire the product into the mains – as test leads are supplied with a 3 pin plug.

Test leads are also a useful tool if you need to reset the limits (stopping positions) and you are not using Silent Gliss radio controls. In most cases, limits are factory set, but the factory limits are set based on assumptions and tweaking may be needed on site.

Examples of where a test lead would avoid problems:

Roman: Factory limits are set, however these limits often need to be reset, as the blind is not attached when the head rail is made. The weight of fabric can affect the limits. If there is no hard wiring in place, you will need a test lead and 3 pin plug socket available to supply power to the headrail.

Electric track: The limits on electric tracks can usually be set using wireless controls or by using the buttons on the motor. If there is no hard wiring in place, you will need a test lead and 3 pin plug socket available to supply power to the headrail.

Roller: If the fabric is not in the correct position when the blind is mounted to the brackets, you will need to reset the limits. Operating the blind without reseting the limits could potentially causing damage to the fabric, if limit is set to high. If there is no hard wiring in place, you will need a test lead and 3 pin plug socket available to supply power to the headrail.

Please click here to view the Technical Brochure for the Silent Gliss 4970 roller blind.

Please click here for the fitting instructions for the Silent Gliss 4930 motorised roller blind.

Please also refer to the Technical Brochure that contains fitting information.
