Blindspace – Blind Box Profiles

Designed to Disappear

Blindspace blind box profiles to conceal any type of blind, in any type of window. The unique Blindspace design provides millimetre precision and a better finished aesthetic than traditional building methods whilst saving you time in both design and installation.

The hidden space inside the wall or ceiling can be prepared for manual or electric blinds and accessed for blind installation when construction work is completed. From the smallest windows to massive doors and skylights, our solutions are made to make any blind disappear. The alternative is surface-mounted products with visible side channels, cables or cords.

Multiple Configurations

Blinds are concealed in any of the following ways using Blindspace boxes.

  • Concealed inside the wall.

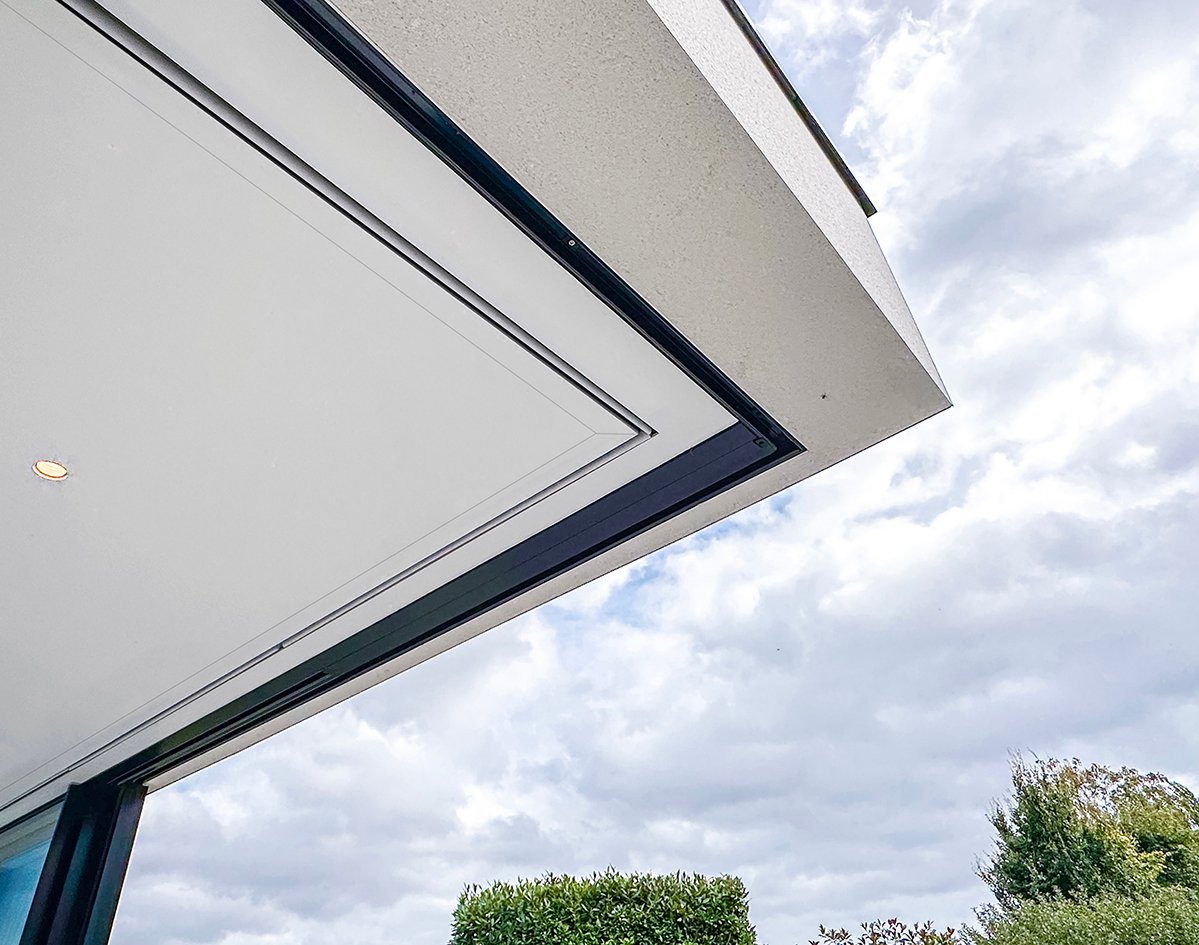

  • Concealed inside the ceiling, with the blind gap towards the window or towards the room.

RAL Colour Matching

All Blindspace blind box profiles can be primed and painted on site, alternatively we can offer a colour matching service  to any RAL reference.  Either the entire box or just the hinged cover plate can be colour matched.  In most instances if the box is being fully recessed, it will only be the hinged cover plate that would need to be colour matched.  Both options are available when you specify the product above.  For the majority of colours a powder coating process is used, however for some special colours that are not available in powder coat, a durable wet spray paint will be applied.  The Standard profiles are supplied in RAL 9003 30% gloss.

Buy Blindspace blind box profiles online using our product configurator  – or call for assistance and advice.

Our prices are for a fully made to measure specification cut to your exact specification.  If you want to save on the BlindSpace cut to size charge then order in 600cm lengths.  All our prices include end caps as standard.

Blindspace Blind Box Fitting Instructions

Headbox for Windows & Doors

Headbox & Side Boxes for Windows & Doors

Fitting Tips:

Blinds can be concealed inside the wall or inside the ceiling, with the blind gap towards the window or towards the room. The most common configuration in windows and doors, is to use a headbox only, however in rooms where blackout blinds may be required, Blindspace side boxes and bottom boxes are also frequently used.

As a general rule, blinds should be installed as close to the window as possible to minimize gaps on the sides of the blind. This increase privacy, reduce light coming in and warm air circulating to the room. With Blindspace side boxes, gaps can be eliminated and 100% blackout can be achieved.

It is important to allow for protruding door and window handles when configuring the blind gap close to the window.

Please note:  Due to the size and weight of these products we can only offer subsidised and not free shipping.  Shipping costs are detailed at checkout.

Measuring Guide

  1. Refer to the examples below for the 100×100 and 110×130 box sizes.
  2. Download the technical drawing for your installation type from the ‘Sizes and Technical Drawings’ tab.
  3. Download the fitting instructions below for additional guidance.

100×100 top box with 100×60 side channels

110×130 top box with 110×50 side channels

Blindspace Fitting Instructions

Headbox for Windows & Doors

Headbox & Side Boxes for Windows & Doors


Sizes and Technical Drawings

The size of the Blindspace box required depends on the type and size of the blinds to be fitted. The larger the glazing area and blind, the more space is needed to hide the blinds. As a general rule, a bigger box also allows for more options and easier installation.

The largest length of a single blind fitted within a 100×100 box is 2.5m. The largest length of a single blind fitted within a 110×130 box is 3.5m. Multiple blinds can be fitted side by side.

Due to the increased stack on cellular blinds (when the blinds are fully raised), for longer drops we recommend the 110×130 box profile.  This should ensure the hembar remains concealed.

Click on the images below to download the box specification sheets and review the dimensions and flange location options.

Standard Blindspace S Series boxes are available in 100×100 mm and 110×130 mm. For single roller blinds in floor-to-ceiling glazing, we recommend S110x130, however S100x100 is the most popular option. S Series is available in 6m lengths or cut to specification.

Available in two sizes and four flange options.



Our online configurator will automatically specify the correct side channels for the top box size selected.

Technical drawings for sample installations are provided by clicking on the links below:

S100x100R – Blinds installed towards the window.

S100x100I – Blinds installed towards the room.

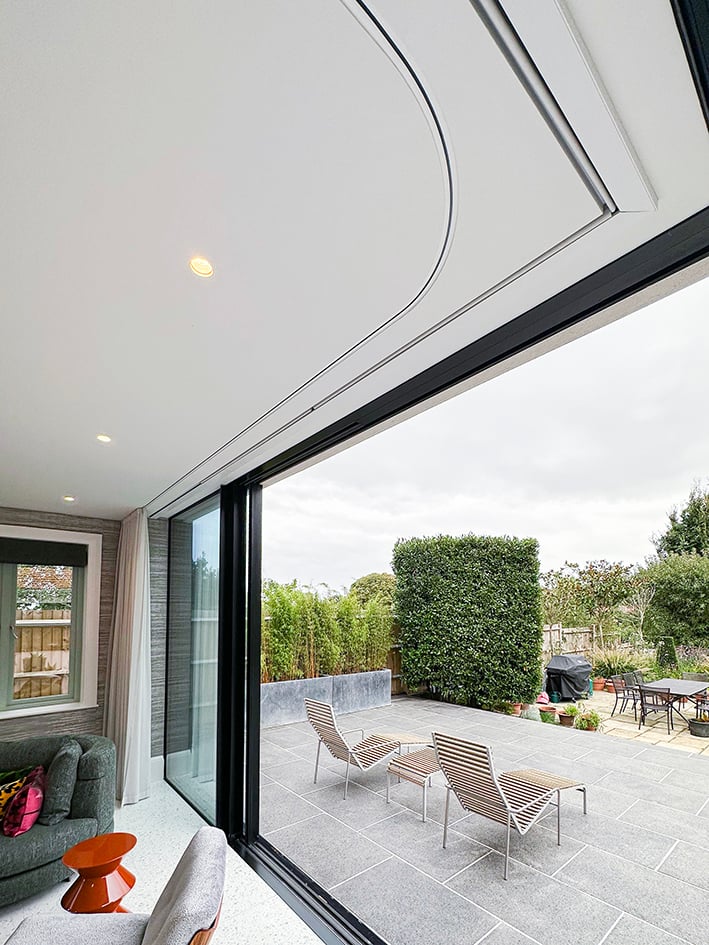

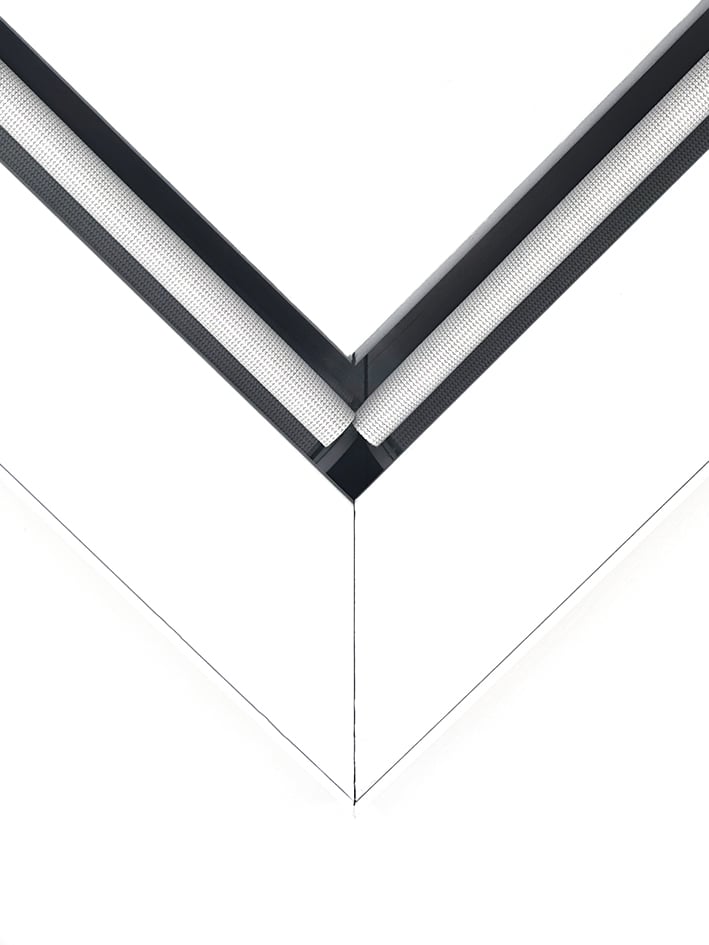

S100x100R Corner M – Blinds installed in corner with mitred boxes.

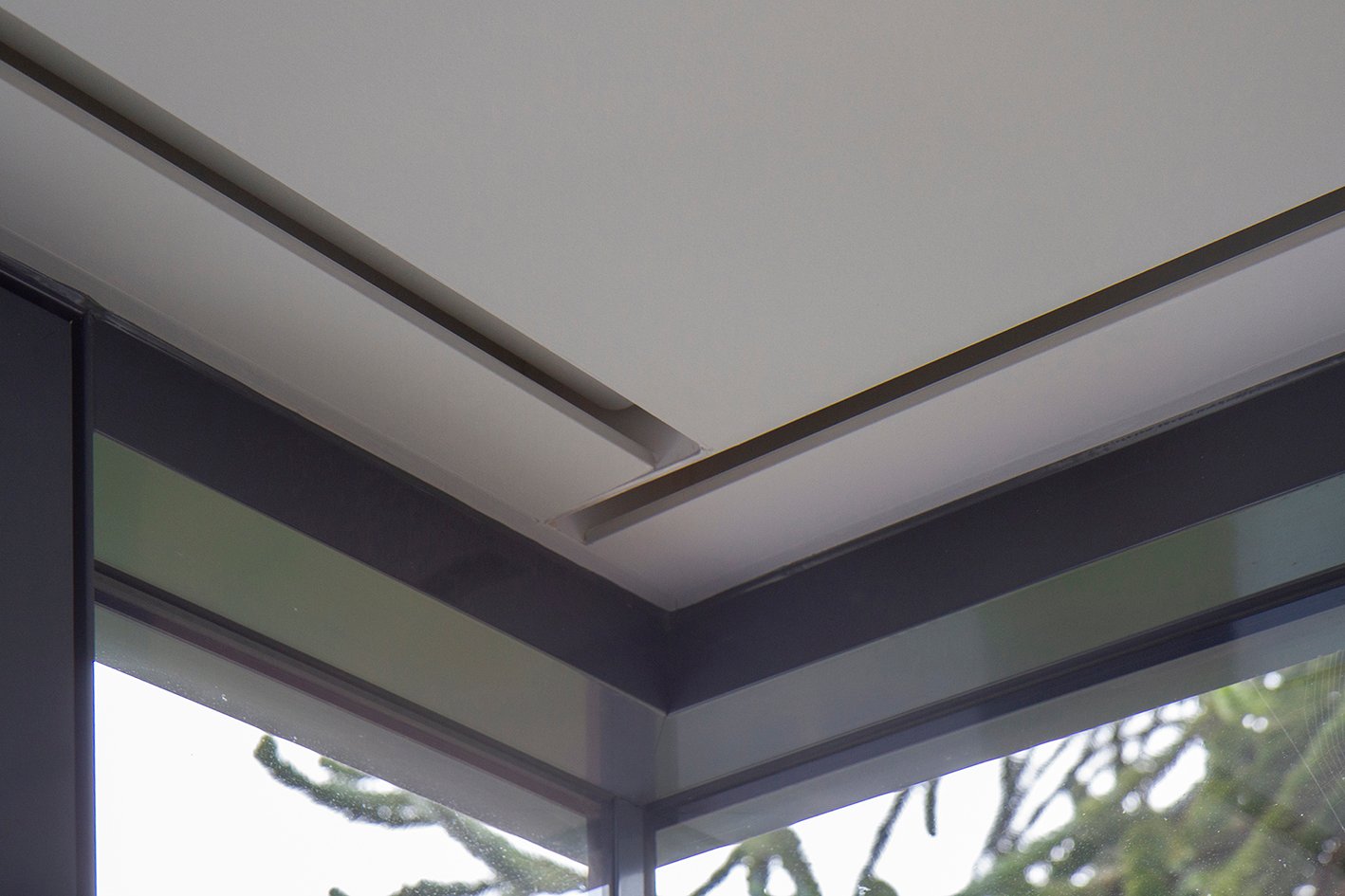

S100x100R Corner B – Blinds installed in corner with butted boxes.

S100x100N + RTF1 – Blinds installed together with Reese profile curtain track.


Headbox-only to frames around glazing
Top-down or bottom-up
One, two, three, or four-sided skylight frames


Standard anchoring
Skim coat over flanges
Alt fixing with screw through box and adhesive


Custom made to any size
Pre-cut to length or 3m lengths
Splice-plates provided for multiple covers


Unfinished for site painting
Primed for site painting (special order)
Pre-finished to RAL colour (special order)

Standard Profiles supplied in RAL 9003 30% gloss

Skim coat flanges

Flanges on both sides
Flange on one side
No flanges


Anodized Aluminium
Front plate: EN 6063 T6
Back box: EN AW-1050A H14/24
